Windshield wiper and washer circuit (sedan, without rain sensor) (Chevrolet Lacetti J200)

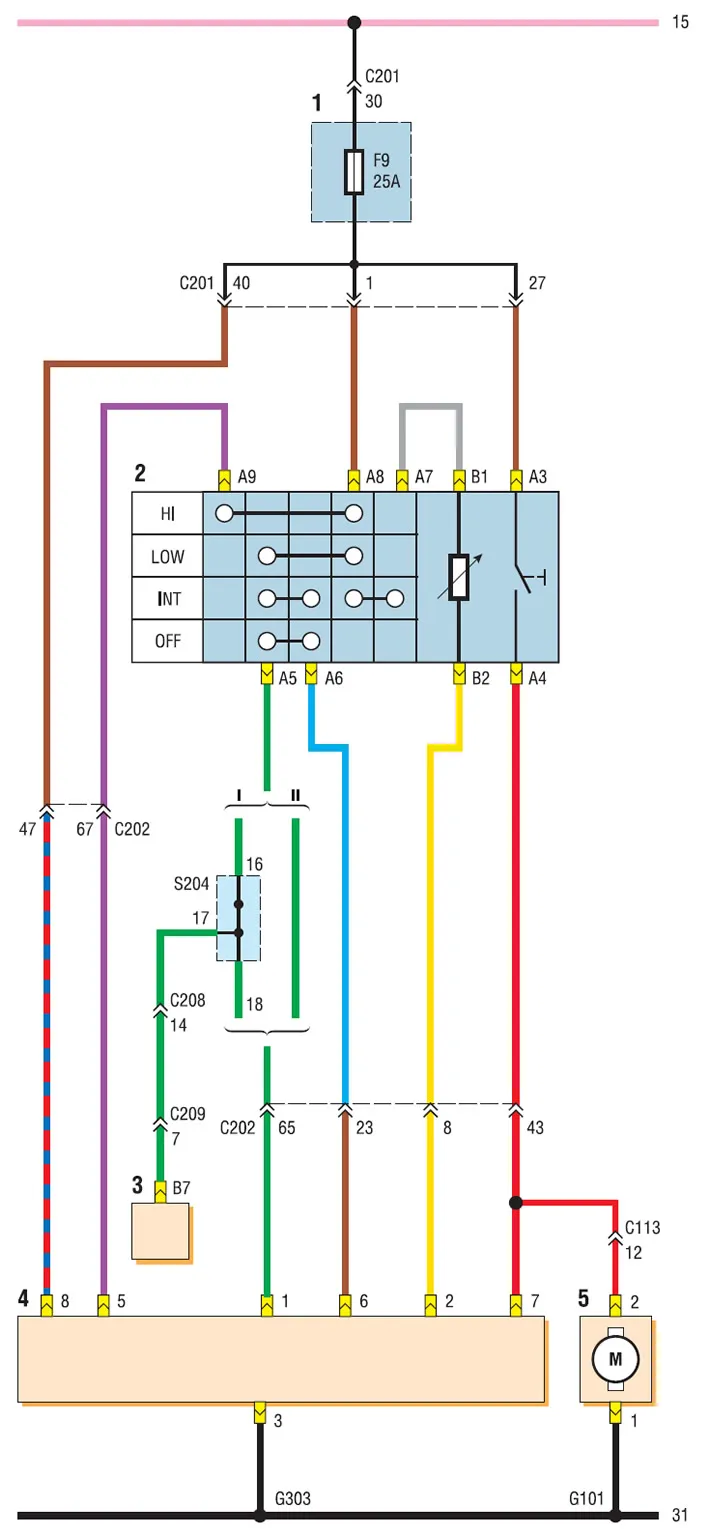

Windshield wiper and washer circuit diagram (sedan, without rain sensor): I - with automatic air conditioning control; II - without automatic air conditioning control; 1 - fuse box in the passenger compartment; 2 - right steering column wiper and washer switch; 3 - automatic air conditioning control unit; 4 - wiper motor; 5 - washer pump electric motor
